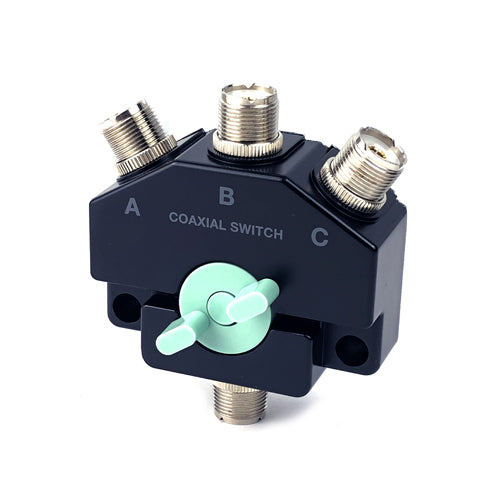

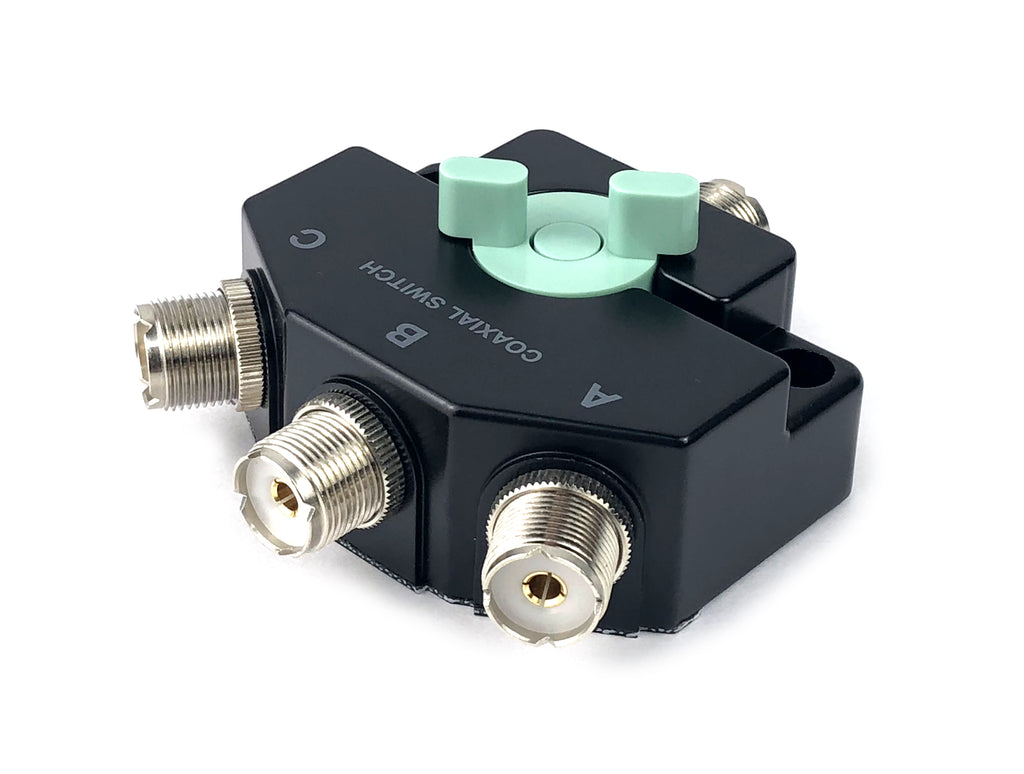

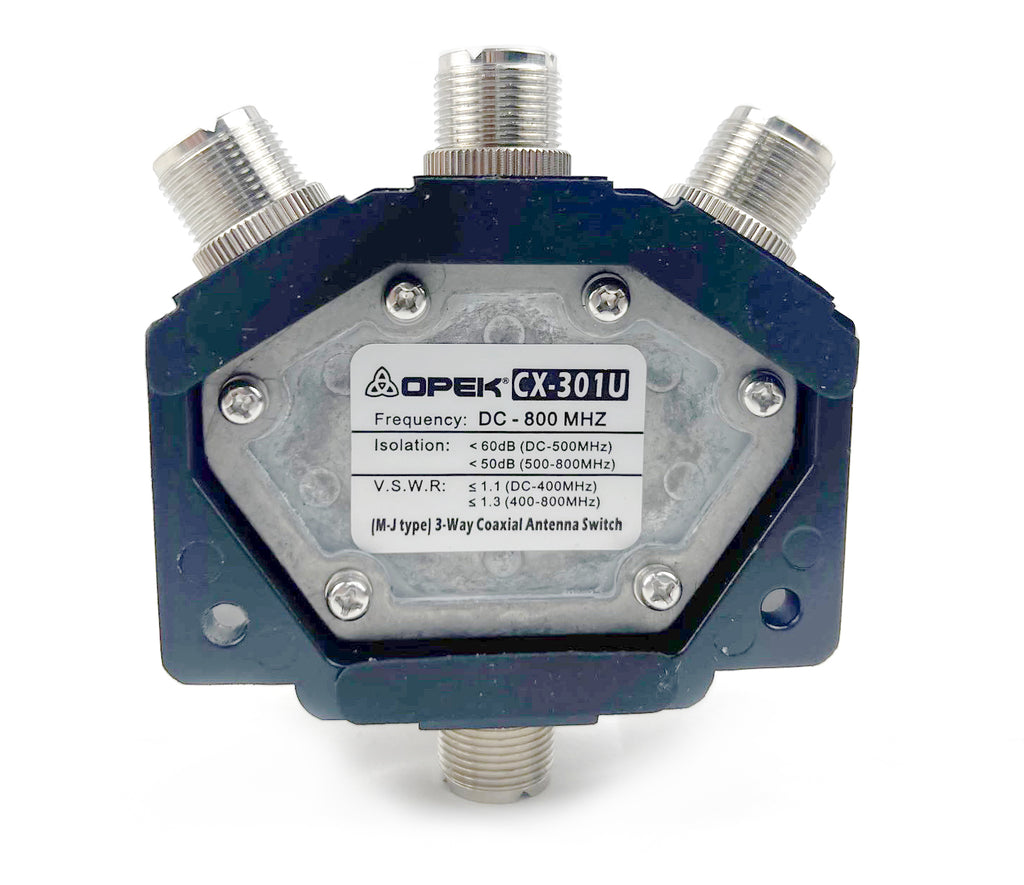

OPEK 3-Way HF/VHF/UHF Antenna Switch, CX-301U, SO-239 Connectors

OPEK 3-Way HF/VHF/UHF Antenna Switch

Easily switch between three antennas and one radio with the turn of a knob. Made in Taiwan (not China).

• ROTARY SELECTING SWITCH
• FREQUENCY RANGE : DC - 800 MHz
• IMPEDANCE : 50 Ohms
• VS.W.R :  1.1:1 (DC - 500 MHz)
                  1.2:1 (500 - 800 MHz)
• INSERTION LOSS : 0.1dB (DC - 500MHz)
                                    0.15dB (500 to 800MHz)
• Max. POWER RATING :  1.5 kW (DC - 30 MHz)
                                            1 kW (30 - 150 MHz)
                                           500W (150 - 500 MHz)
• ISOLATION : <=60dB  (DC-500MHz)
• WEIGHT: 1 lb, 5 oz.
• DIMENSIONS : 3.2"(W) x 3.7"(H) x 1.7"(D)
• Ships quickly and safely from Mississippi
