- FREQUENCY RANGE : DC~500 MHz
- IMPEDANCE : 50 Ohms
- POWER RANGE : DC~200 Mhz 1KW PEP
300~500 Mhz 500W PEP - ISOLATION : <=50dB
V.S.W.R. : DC~300 MHz <= 1.5
300~500 MHz <= 2.0 - CONNECTORS: SO-239 UHF Coax Type
- DIMENSIONS : 3.7"(W) x 2.1"(H) x 3.3"(D)
- ORIGIN: Taiwan (NOT CHINA)
- Ships quickly and safely from Mississippi.
OPEK

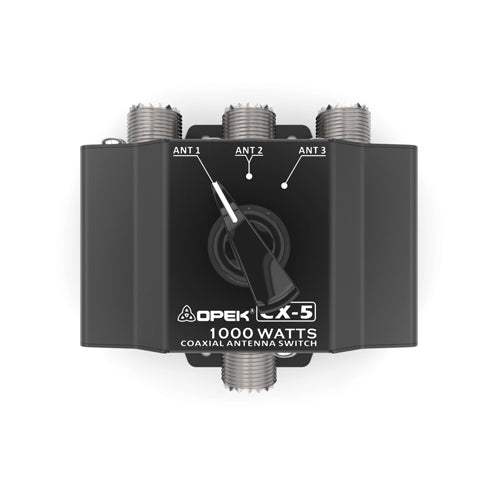

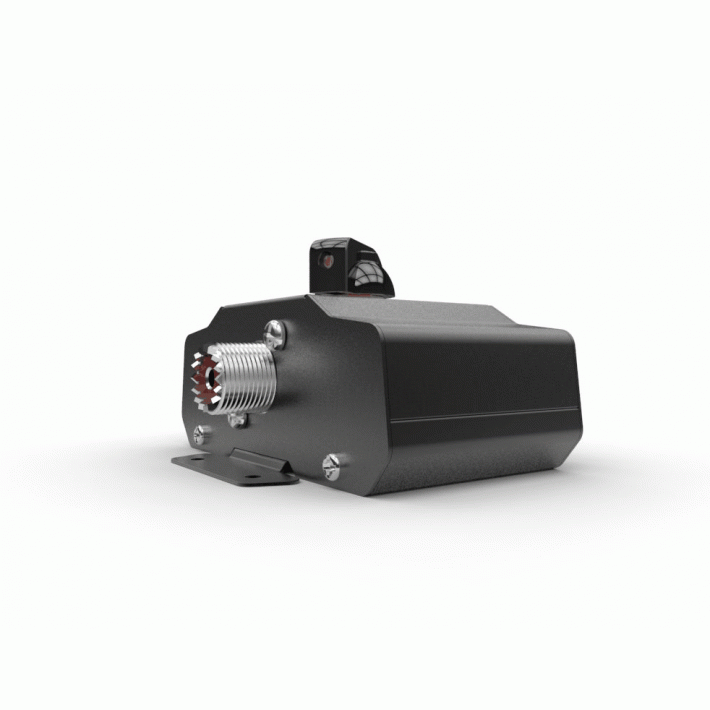

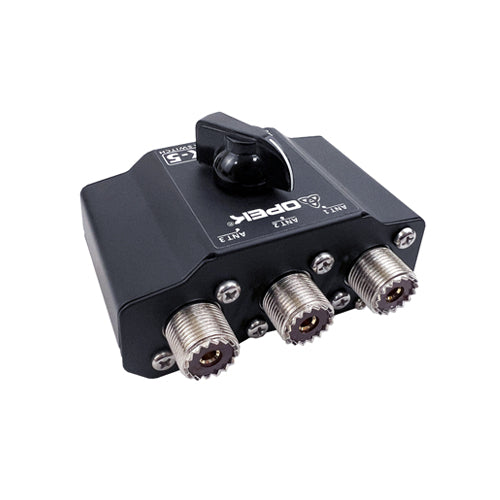

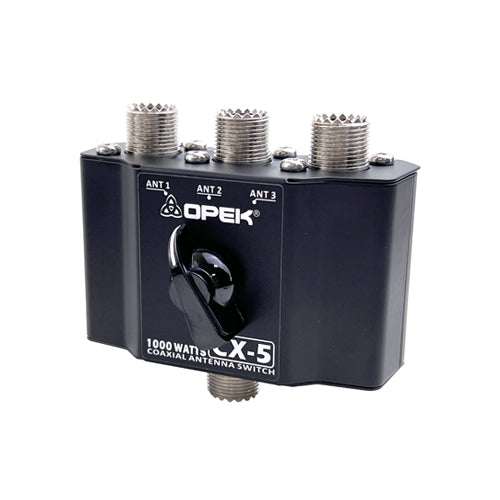

OPEK 3-Way HF/VHF/UHF Antenna Switch CX-5, SO-239 Connectors
Regular price
$34.95
3-WAY COAX ANTENNA SWITCH
Switch one radio between three antennas with a turn of the knob. High quality switch, a really solid peformer.
