Fleeman Anderson Bird

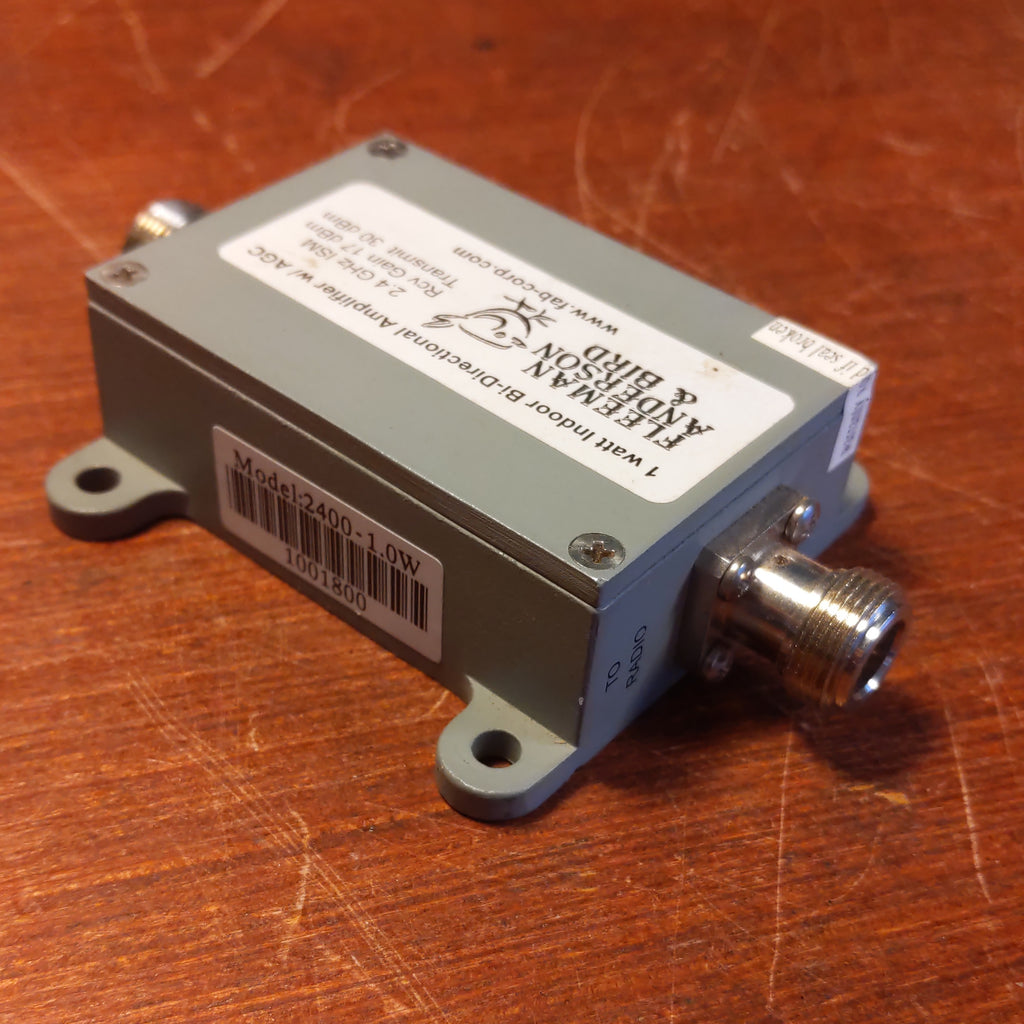

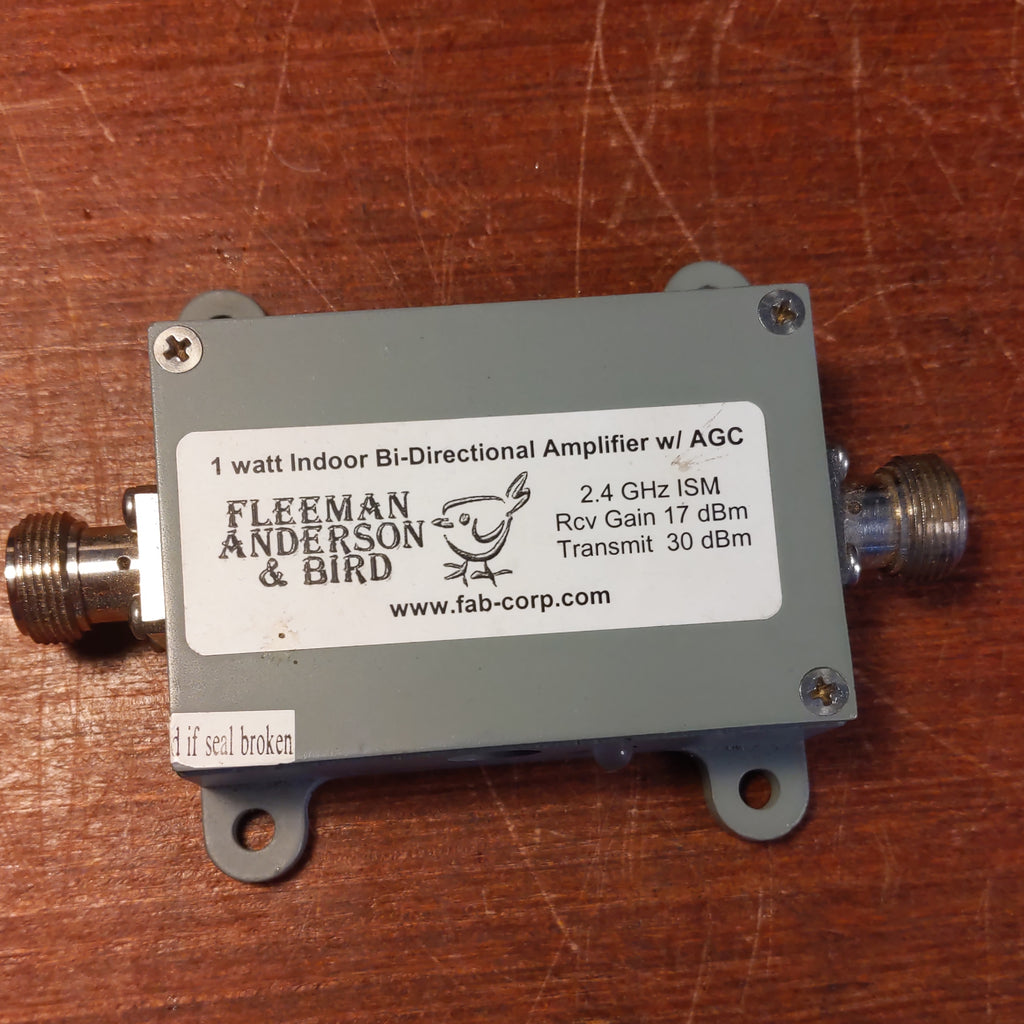

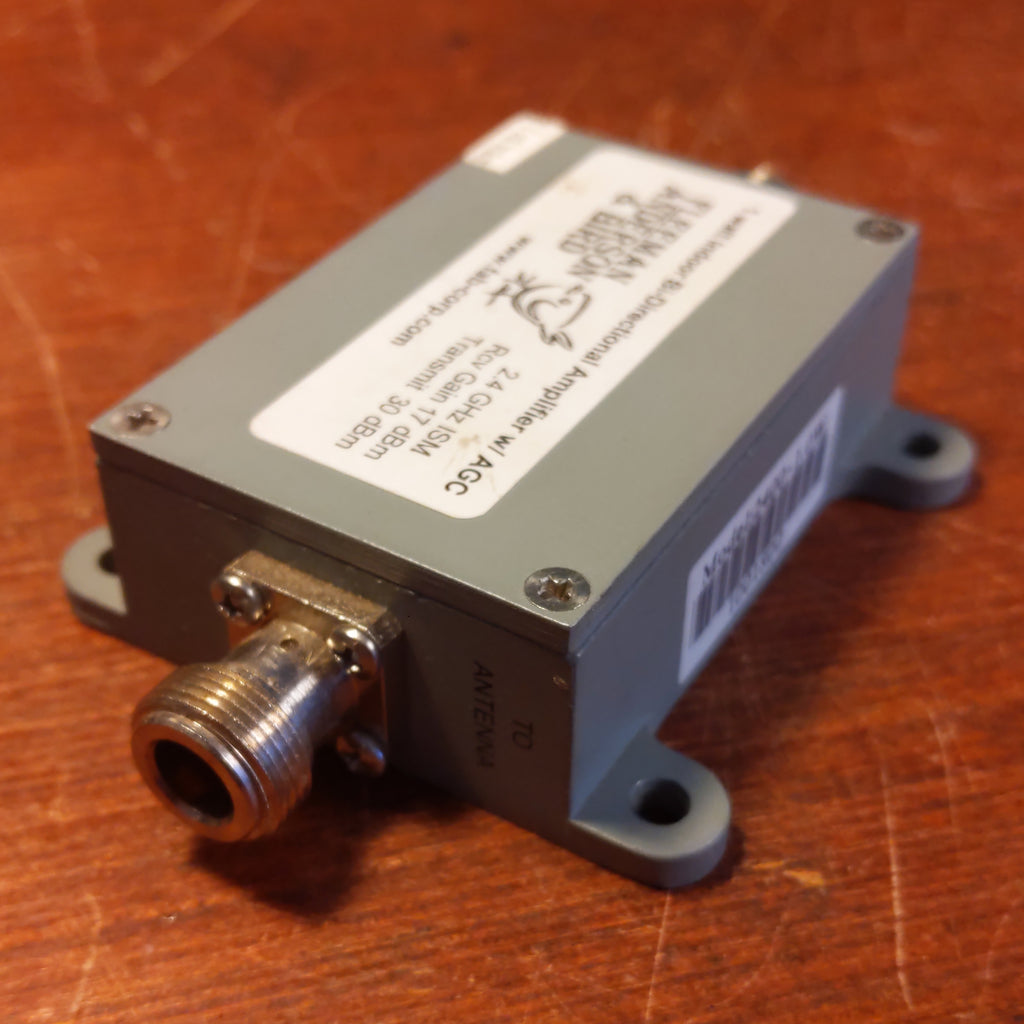

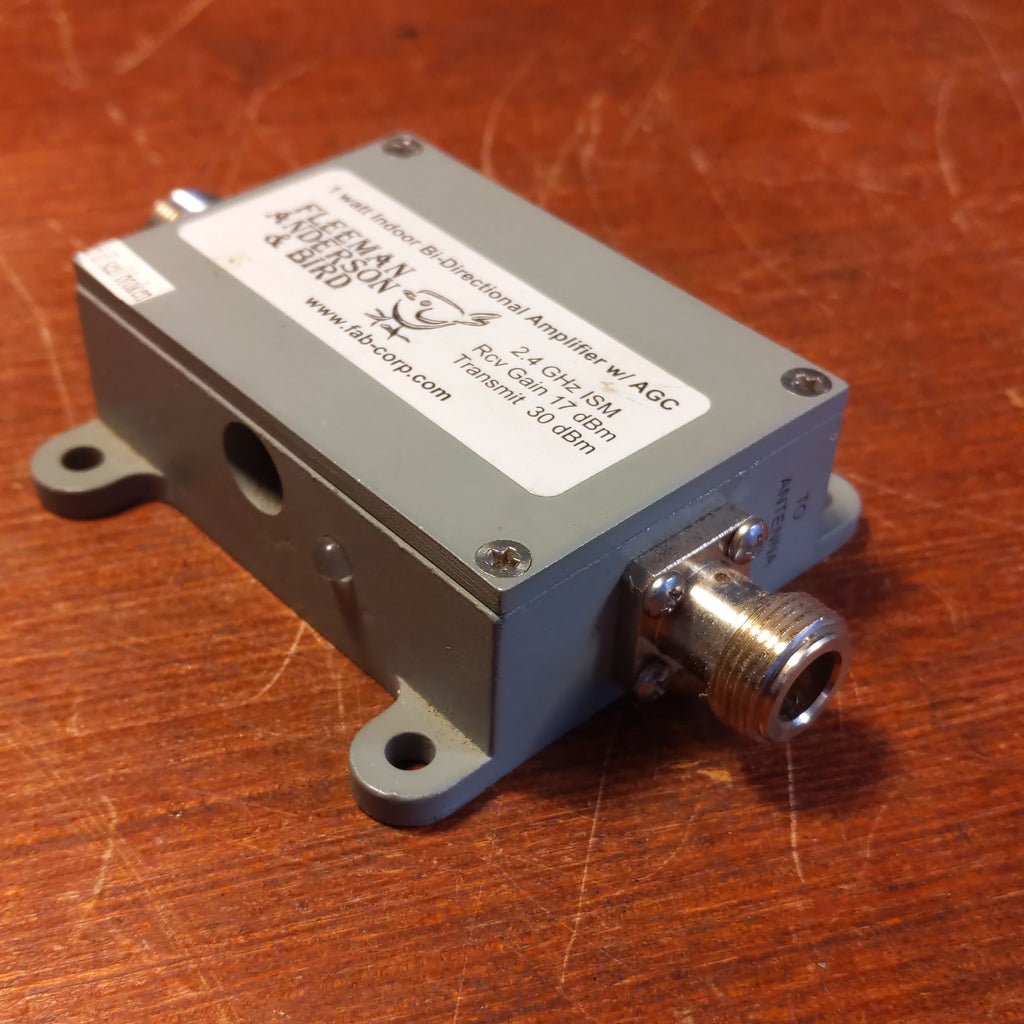

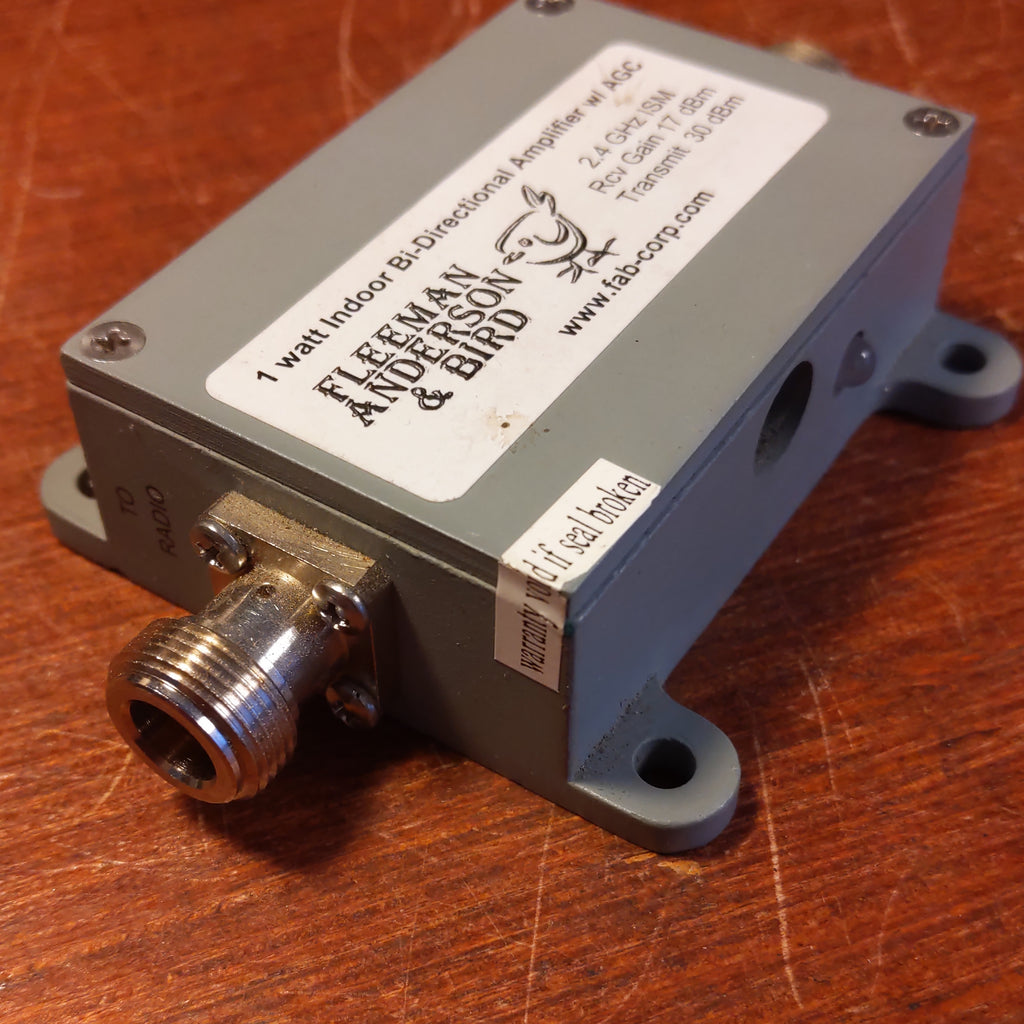

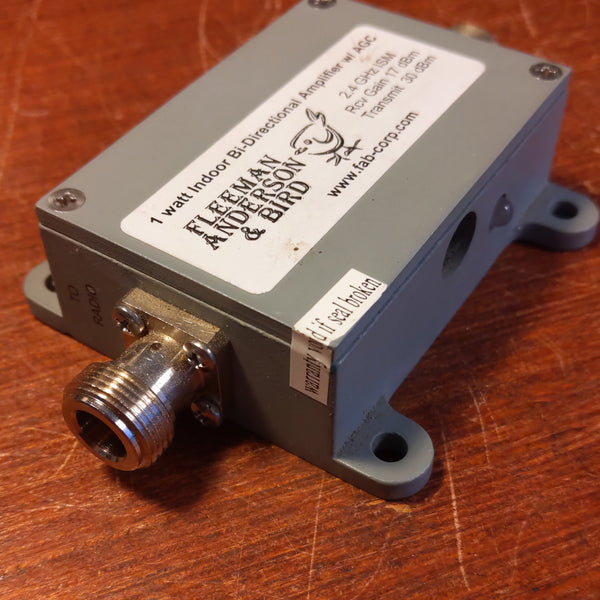

Fleeman, Anderson, Bird 1W Bi-Directional Amplifier, AGC, 2.4 GHz

$75.00

Device Type: 2.4 GHz Amplifier
Frequency Bands: 2.4 GHz
Operating Mode: Bidirectional, TDD
Frequency: 2400 - 2500 MHz
Input Voltage(DC): 9 VDC
Input Current: 0.13 A
Noise Figure: 3.5 dB
Min Transmit Input Power: 0 dBm (1 mW)
Max Transmit Input Power: 23 dBm (200 mW)
Max Transmit Output Power: 30 dBm (1 W)
Transmit Gain: 30 dB
Receive Gain: 17 dB
Frequency Response: +/-1 dB

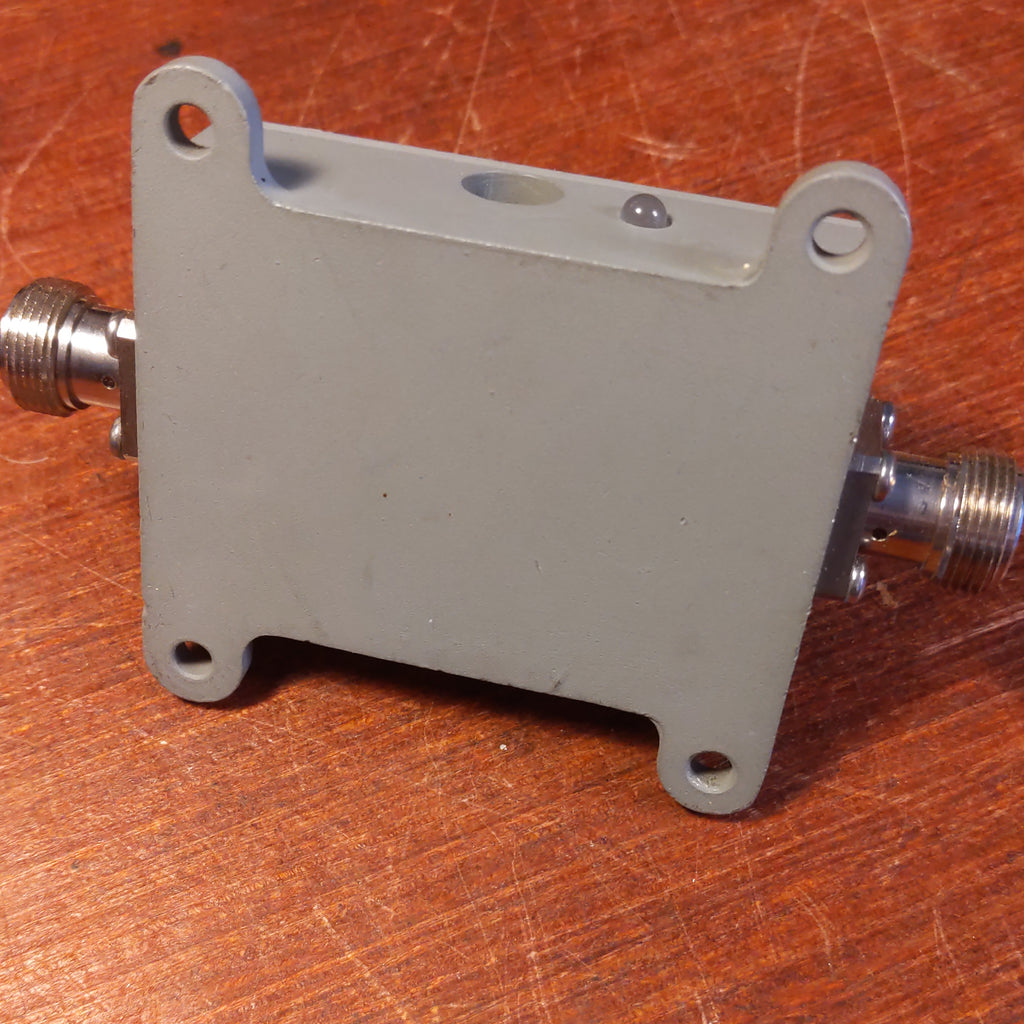

Dimensions Including Mount Ears (Inches): 3 x 3 x 1.1
Weight: 8.1 ounces

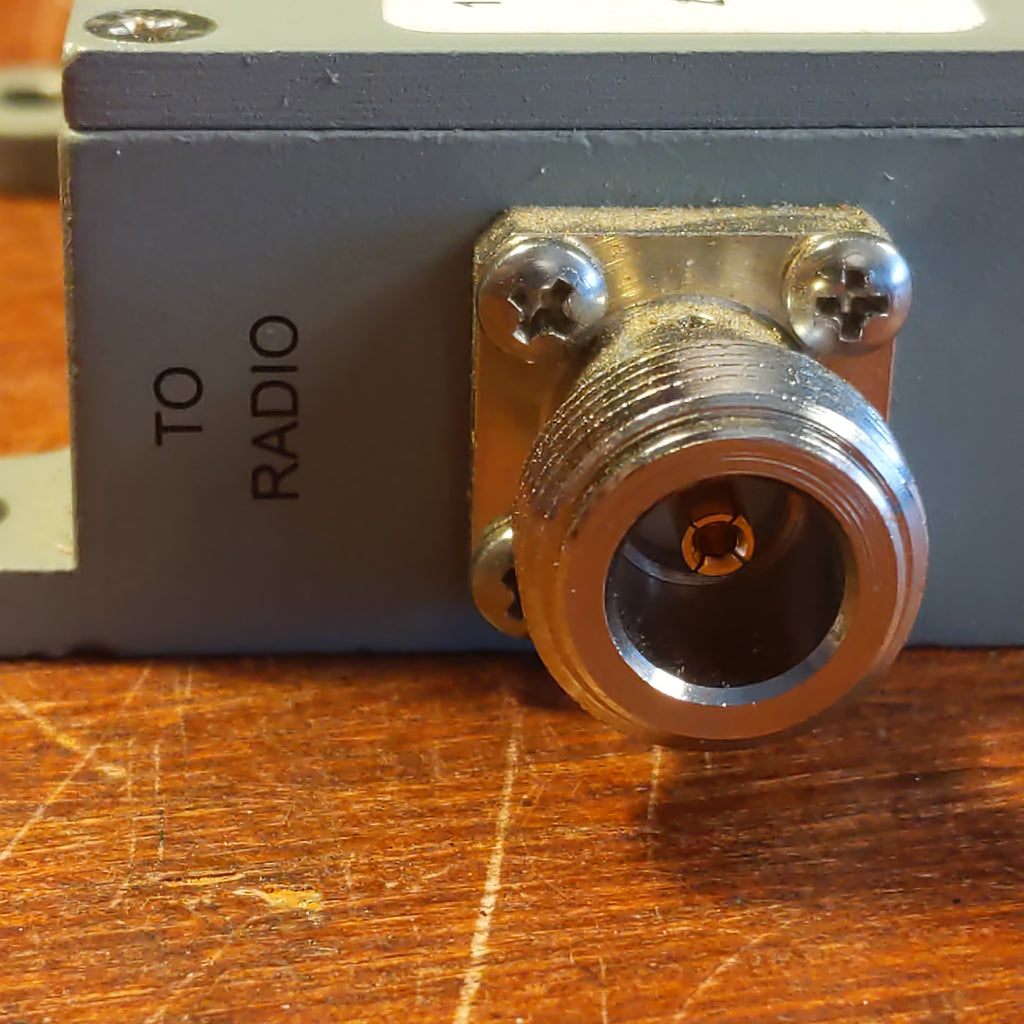

Input Connector: N-Female

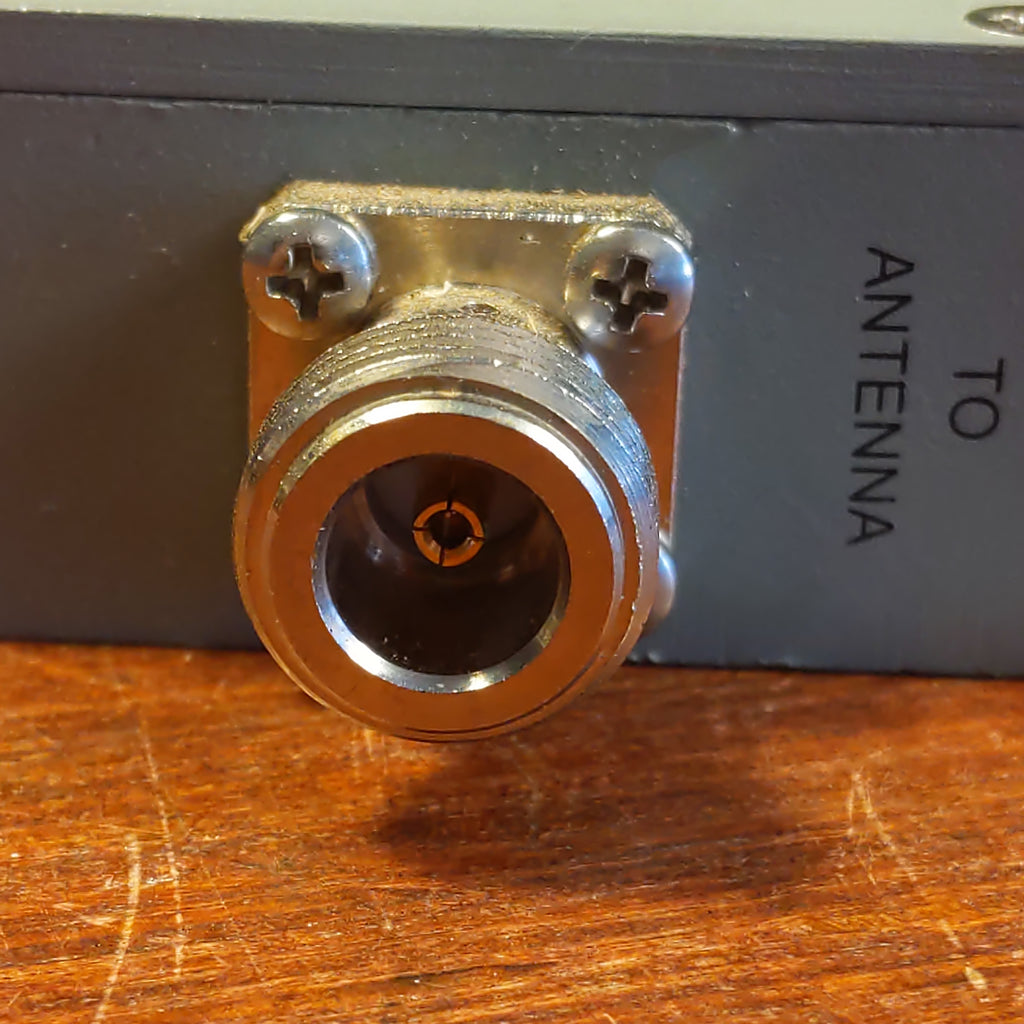

Output Connector: N-Female

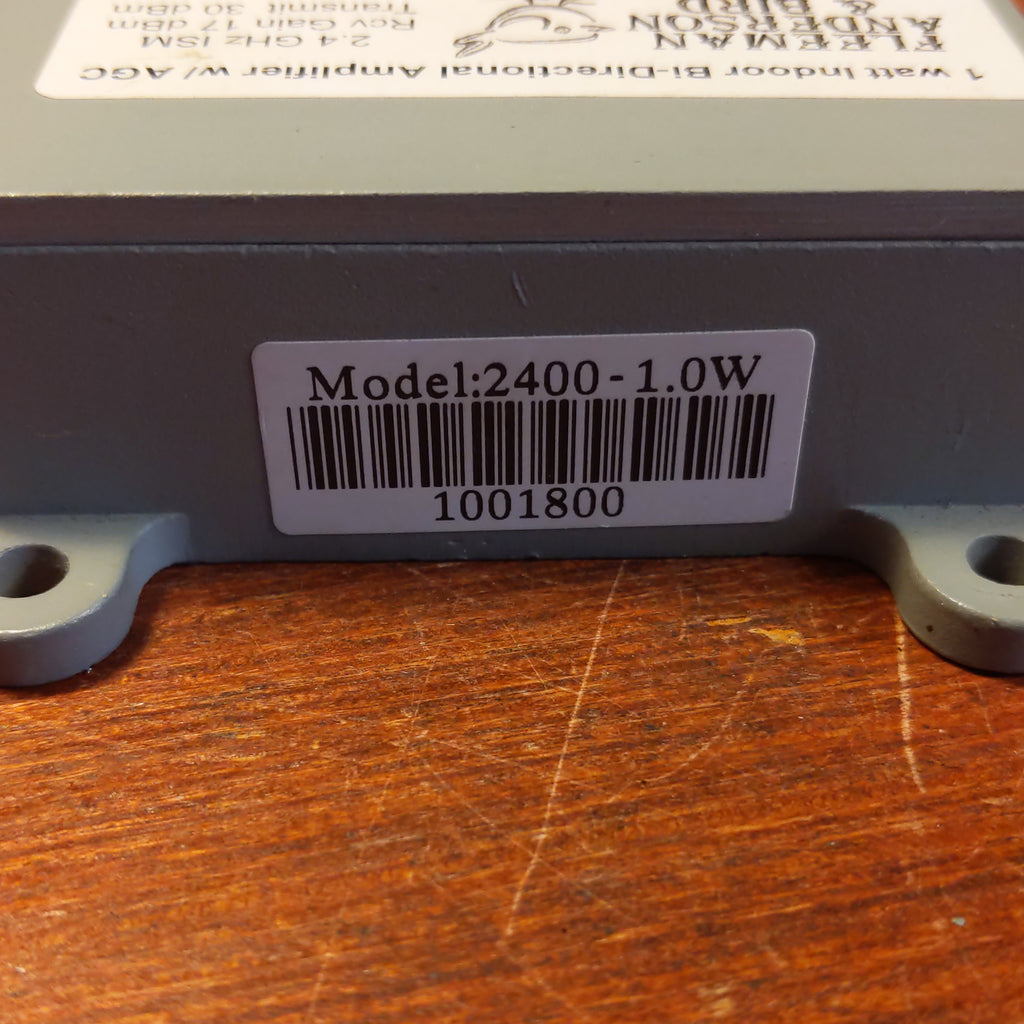

2.4 GHz bi-directional amps aren't something I encounter very often, and I have no way to test this amp. I talked to FAB Corp, and the man there said this operated on 6 VDC. This amp is a dead ringer for a Teletronics 12-213, and it operates on 9 VDC. A search of the internet archives doesn't find a model 2400-1.0W on any version of the FAB website.

This one DOES have AGC.

Since this appears to be a bit of a unicorn, I'm selling it as is, for parts or repair. No warranty, no return, etc. I suspect it works fine, but I have no way to be sure, so there it is.

Ships quickly and safely from Mississippi.
