Amphenol

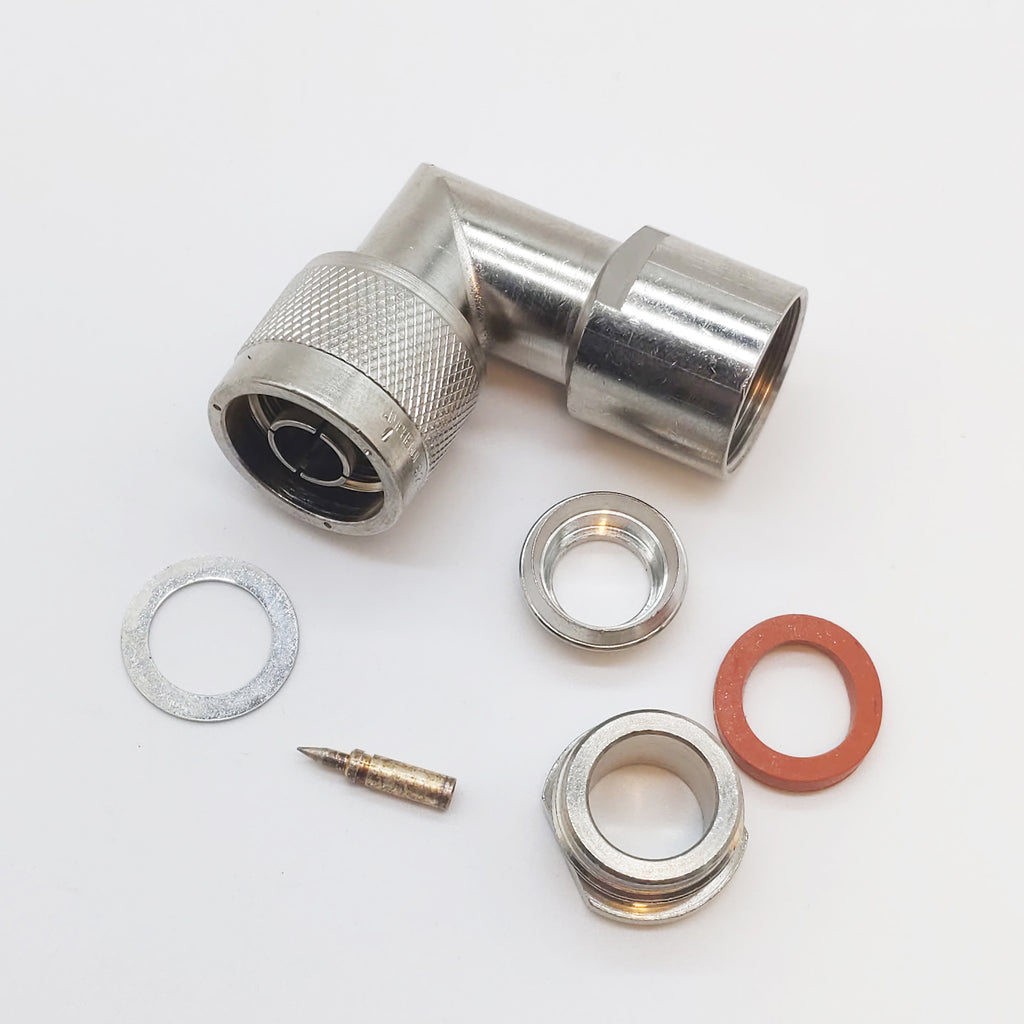

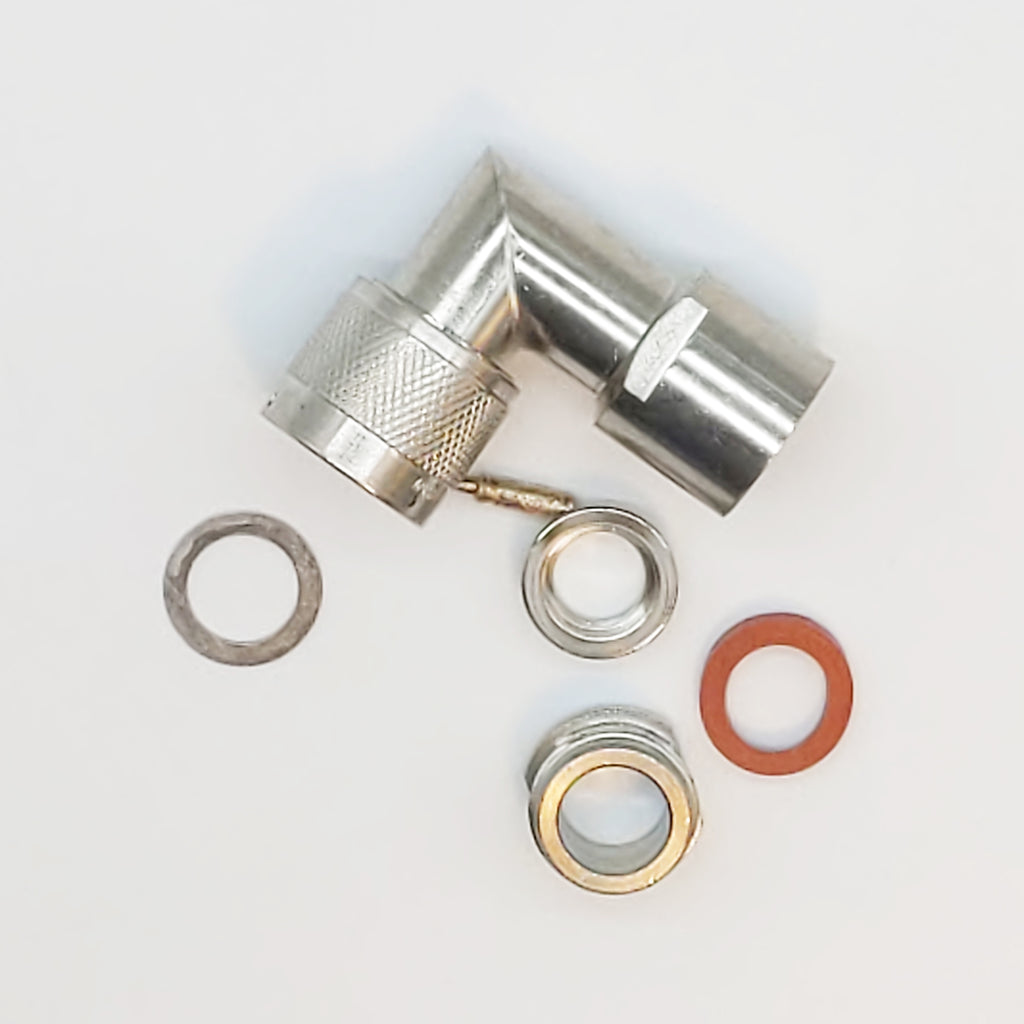

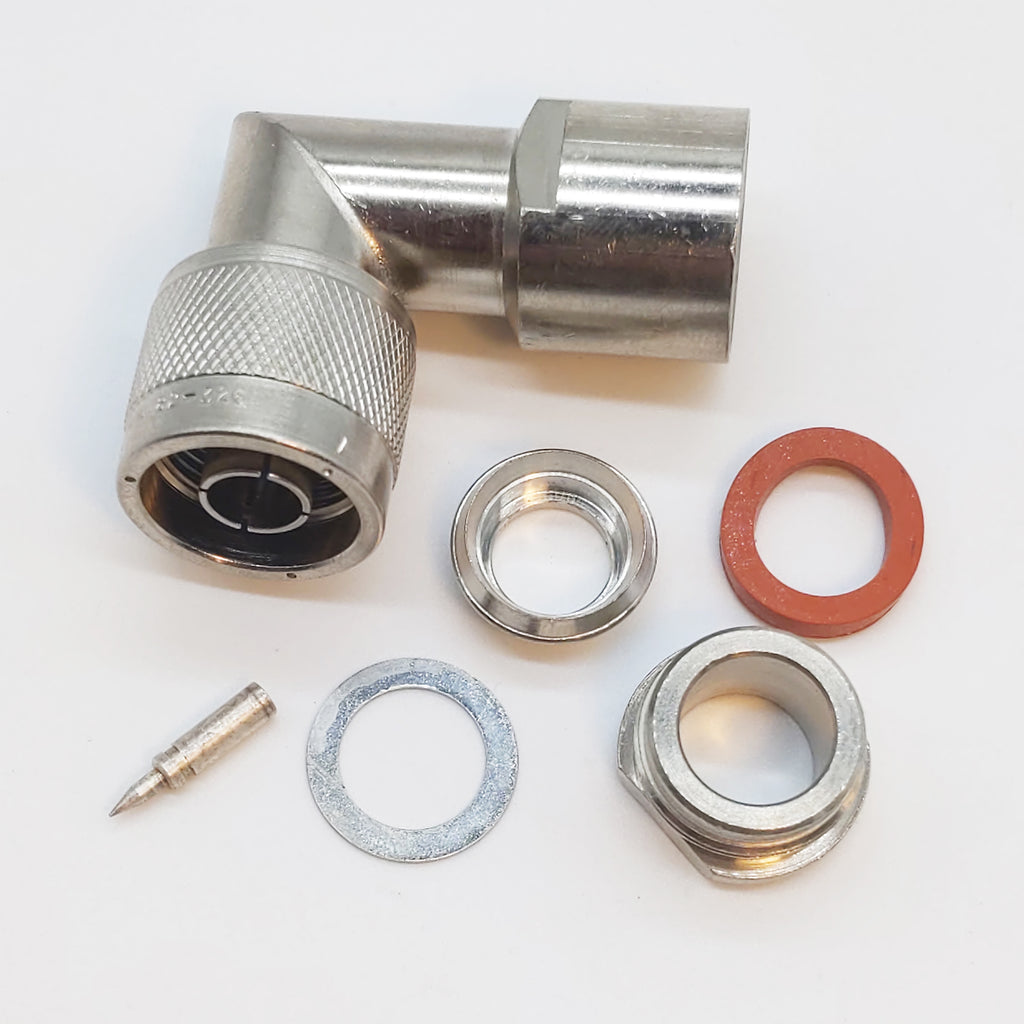

Amphenol USA 82-329 N-Male Right Angle Cable End Connector

$29.95

Right angle, Type N Male Connector, silver plate, made in USA.

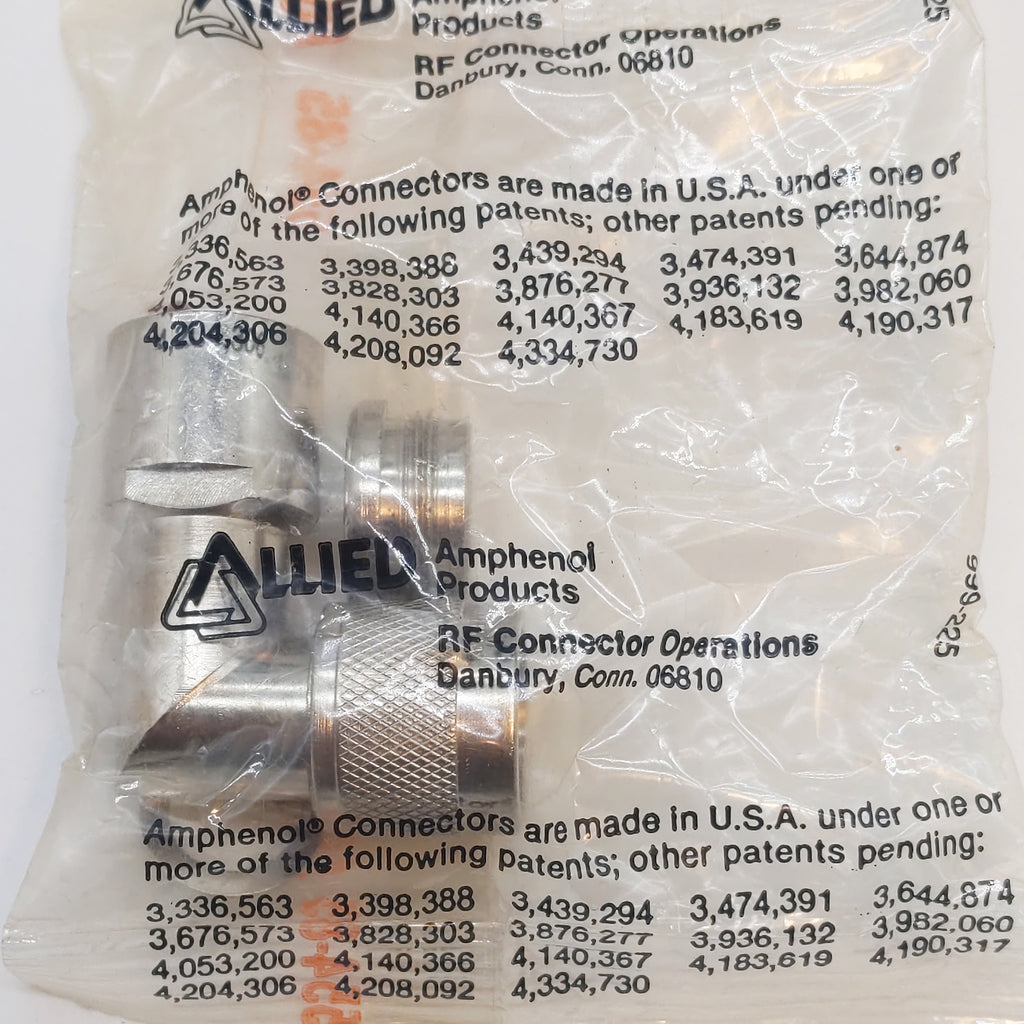

New old stock, in sealed Amphenol packages. A couple of packages were opened and resealed only for these photos.

We have a limited supply of these, and when they are gone, they're gone.

Ships quickly and safely from Mississippi.

Thread Class 2B
Thread Direction Right-hand
Body Style Angle, shape, internal coupling
Overall Length 1.938 inches nominal
Overall Height 1.297 inches nominal
Overall Diameter 0.812 inches nominal
Environmental Protection Corrosion resistant and cold resistant and heat resistant, and moisture resistant and shock resistant and vibration resistant and weatherproof
Cable Entrance Diameter 0.405 inches minimum and 0.430 inches maximum
Threaded Device Type Coupling facility
Mating End Quantity 1
Contact Position Arrangement Style N single mating end
Contact Removability Nonremovable single mating end single contact grouping
Shell Type Solid
Connector Locking Method Internally threaded coupling ring
Connector Cable Strain Relief Method Crimp type
Radio Frequency Type Contact Characteristic Impedance in Ohms 50
Thread Quantity per Inch 24
Nominal Thread Size 0.625 inches
Terminal Location Back single mating end single contact grouping
Contact Material Copper alloy single mating end single contact grouping
Contact Surface Treatment Silver single mating end single contact grouping
Insert Material Plastic polytetrafluoroethylene single mating end
Terminal Type Crimp single mating end single contact grouping
Shell Material Copper alloy
Included Contact Quantity 1 single mating end single contact grouping
Included Contact Type Coaxial pin single mating end single contact grouping
Precious Material and Location Contact surface silver
Precious Material and Weight 0.005 silver grains, troy
Precious Material Silver
Thread Series Designator UNEF
